Aluminum Grating
OVERVIEW
Aluminum Industrial Floor Grating - EnduFloor
Offers a flush top walking surface for maximum foot contact and comfort.
Aluminium grating EnduFloor provides a lightweight alternative to its steel counterpart. With its different corrosion characteristics, aluminum has a wide range of uses. Aluminum Industrial Floor Grating is best suited for use in conjunction with pedestrian traffic and for very light, rubber pneumatic tired rolling traffic (carts, dollies, and hand trucks).
A serrated surface provides skid resistance.
key features
- Lightweight – high strength-to-weight ratio.
- Non-sparking characteristics.
- Corrosion resistant to most chemicals.
- Excellent antiskid surface.
- Maximum lighting and uninterrupted ventilation.
- Comfortable walking surface.
COMPLIANCE STANDARDS
- BS EN ISO 14122 – Safety of machinery Permanent means of access to machinery
- BS 4592-1 : Industrial type flooring and stair treads.
- Material : AA6063 – T5 (IS-63400)
- Ultimate Tensile Strength : 170-195 MPa
MODELS
- Light Duty Load Rating: 2.5 kN / m2 UDL

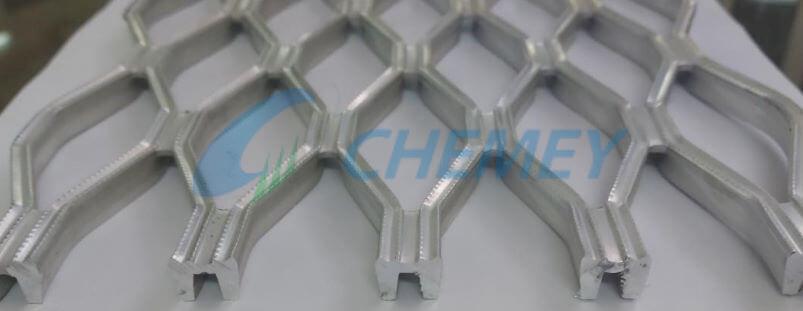

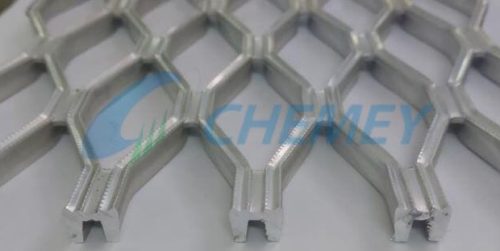

- ▪ Load Bar Ht. : 13 mm
- ▪ Size : 600 mm X 4800 mm Max.
- Medium Duty Load Rating: 5 kN / m2 UDL
- ▪ Load Bar Ht. : 29.5 mm
- ▪ Size : : 370 mm X 4800 mm Max.
- Heavy Duty Load Rating: 7. 5 kN / m2 UDL
- ▪ Load Bar Ht. : 45 mm
- ▪ Size : 200 mm X 4800 mm Max.

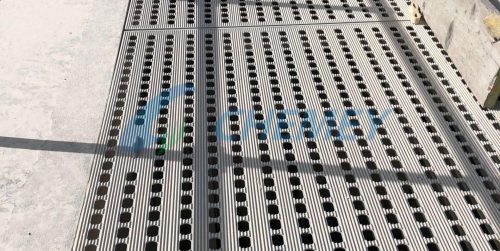

This Interlocking Plank grating is available in unpunched or punched pattern on request.
FAQs
What is grating?
The metal grating is an assembled grid or metal lattice of parallel bearing bars with crossbars or crimp bars used to space and hold the bearing bars erect. Grating provides a surface but allows air, light, heat, sound, and water to pass through.
What is aluminum grating used for?

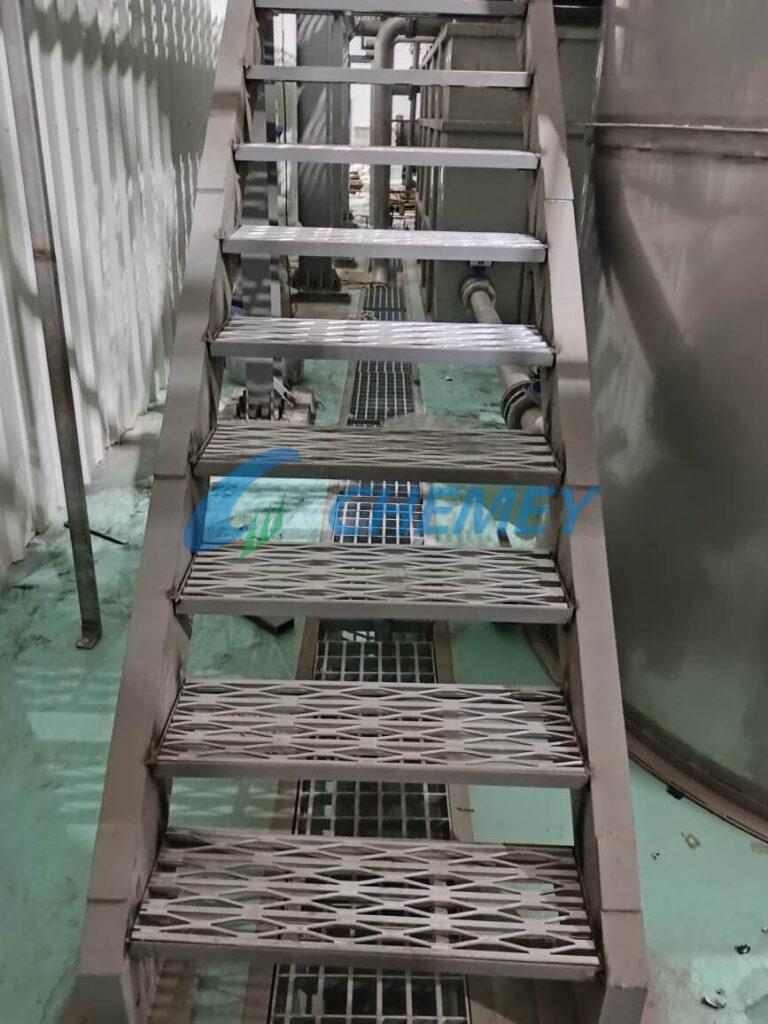

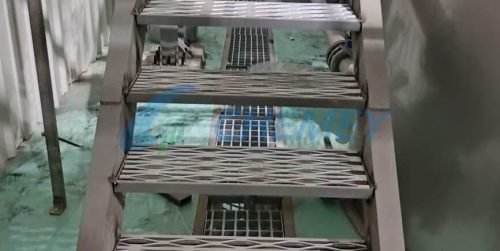

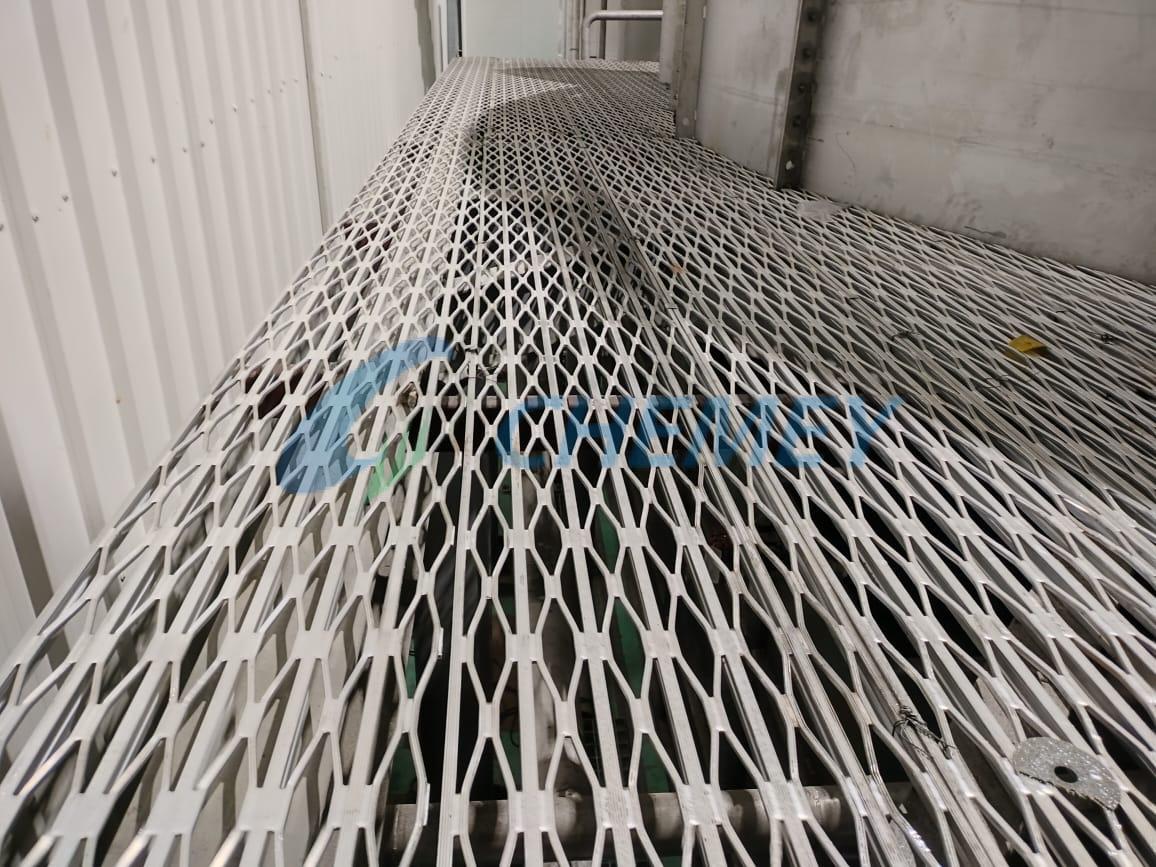

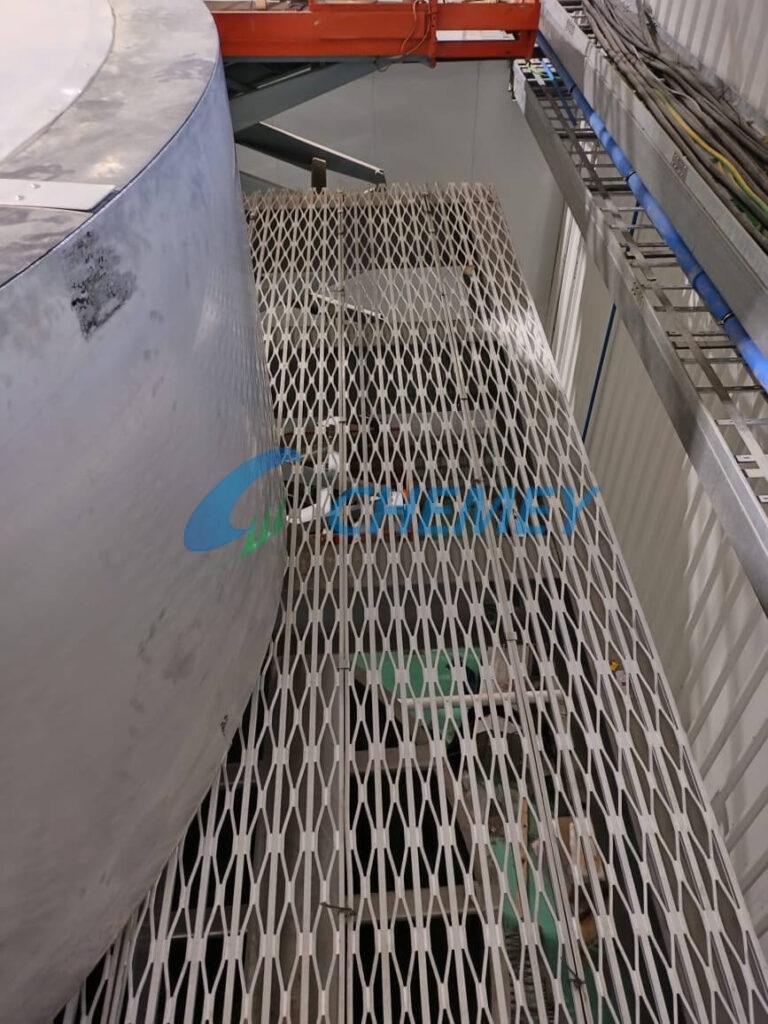

Aluminum grating is lightweight and corrosion-resistant. it can be used for sewage and waste treatment plants, the chemical process industry, offshore rigging drills, marine applications, and more. Aluminum gratings are widely used in various other applications including walkways, floors, platforms, stair treads, bridge deck decoration, etc.
Can you provide accessories for installing aluminum gratings?
Yes, we offer common accessories. If you have special needs, you can send us design drawings directly, and we will customize accessories according to your drawings.
