The easy-to-install and durable Self-Closing Gate features a versatile design enabling it to meet diverse applications. The Self Closing Swing Gate is prefabricated and bolts to existing rail openings to provide a one way, self-closing gate. It is a simple and economical solution to comply with OSHA regulations.

The Self-Closing Gate arm is dimensioned to match top- and mid-rail heights of an OSHA-compliant guardrail. When the gate is installed and the top of the gate is at the OSHA’s recommended nominal height of 42”, the bottom of the gate is positioned at a height of 21”.

Applications range from ladder ways, mezzanines, pedestrian traffic, machine guarding guard rail and hand rail openings.

mild steel construction

• Mild steel construction.
• Powder Coated Safety Yellow.
• Steel spring for self-closing actuation.
• Designed to fit Hand Rail.
• Gate requires a stop point at closing side.
• Universal Clamp – can fix on Square or Round tube up to 2” size.
• Universal mount is designed to fit any hand post angle and direction.
• Telescoping model adjusts every 2″ for versatility.

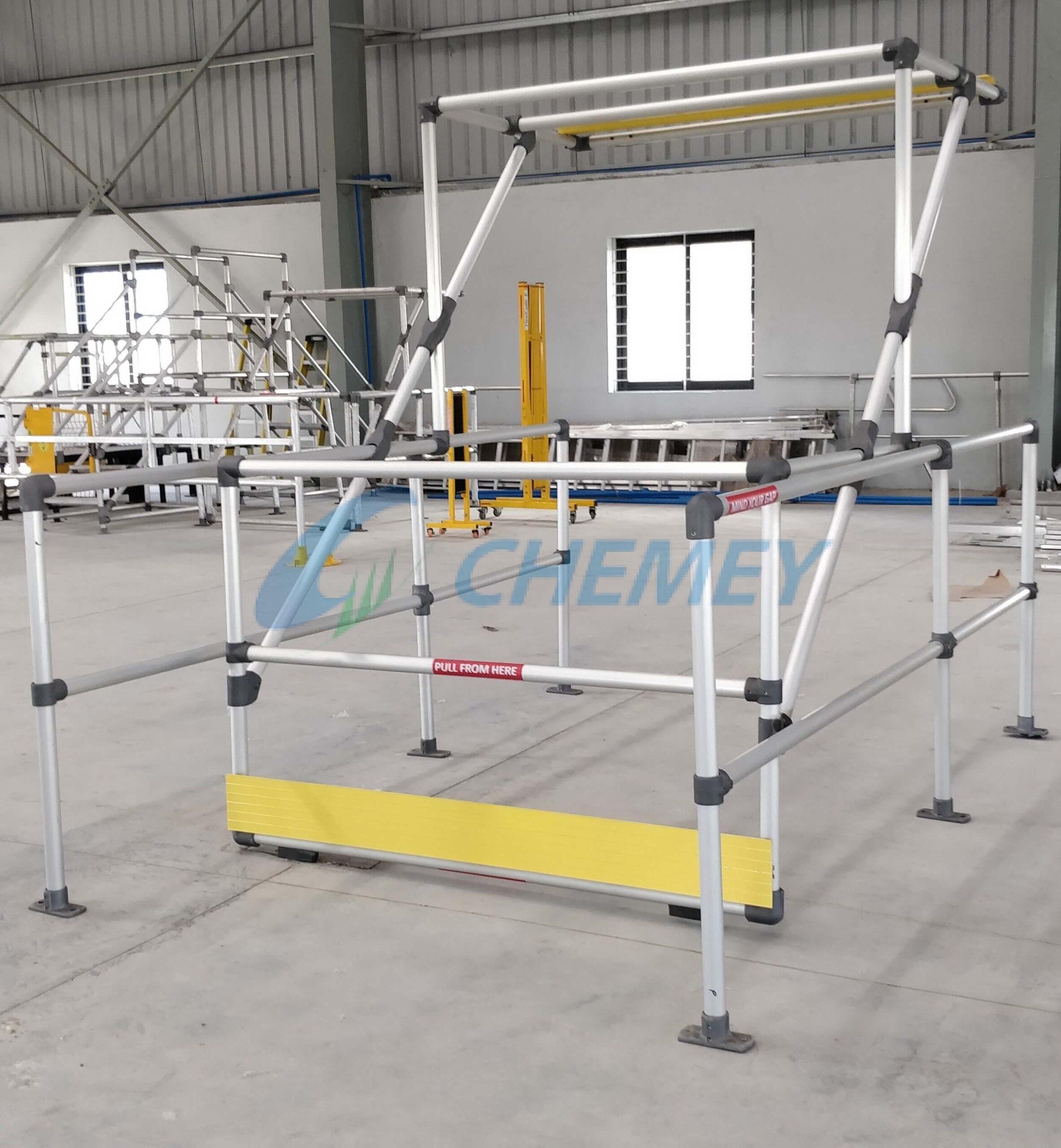

Aluminum construction

• Aluminum tubular construction.
• Anodizing or Powder Coated Safety Yellow.
• Steel spring for self-closing actuation.
• Designed to fit tubular Modular EnduRail handrail or guardrail
• Gate does not require a stop point at closing side.
• Gate arm can be of any length up to 750 mm for versatility.
• Option available with Adjustable Spring Torsion mechanism to control return speed of the gate.
